• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Pickup box, Wideside
• Chassis, single rear wheel
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Frame, fully-boxed, hydroformed front section
• Steering, Recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 18" (45.7 cm) polished aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Recovery hooks, front, frame-mounted, black
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels. Included with (E63) pickup box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front, body-color
• Bumper, rear, body-color
• CornerStep, rear bumper
• LPO, Assist steps, chromed tubular, 6" rectangular (dealer installed) (May be substituted with (VXJ), (RVQ) or (RVS) assist steps, LPO. (VXH) is deleted when (VXJ), (RVQ), or (RVS) assist steps, LPO are specified when (CHX) 13,025 lbs. GVWR with dual rear wheels is ordered and requires (R8M) VXH factory installed 6" chrome tubular rectangular assist step delete.)
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, halogen projector
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical camper, memory equipped, upper glass, power-folding and manual extending, chrome. Includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Tailgate, locking, utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)
• Cargo ties downs (4), movable upper

• Chevrolet MyLink audio system, 8" Diagonal Color Touch Navigation with AM/FM/SiriusXM USB ports, auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio, voice-activated technology for radio and phone
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds (Visit www.onstar.com for vehicle availability, details and system limitations. Services and connectivity may vary by model and conditions. 4G LTE service available in select markets. 4G LTE performance based on industry averages and vehicle systems design. Some services require data plan.)
• SiriusXM Satellite Radio is standard on nearly all 2015 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus you can listen to SiriusXM Internet Radio everywhere on your computer, smartphone or tablet. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets. (Includes 12-way power driver and front passenger seat adjuster including 4-way power lumbar instead of 2-way. (KA1) heated seat cushions and seat backs is not included.)
• Seating, heated and cooled perforated leather-appointed front bucket (Requires (AN3) front full-feature leather-appointed bucket seats and (H3A), (H3B) or (H3C) perforated leather-appointed seat trims.)
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Console, floor mounted, reconfigurable with moveable cup holders, cell phone storage, power cord management and hanging file holder capability (Requires dual rear wheels.)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Floor mats, carpeted front and rear
• Sill plates, bright
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls
• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Cruise control, steering wheel-mounted
• Universal Home Remote (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Directions and Connections plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic
• Rear Vision Camera with dynamic guide lines (Removed when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.) (Removed when (ZW9) pickup box delete is ordered.)

• 2015 Interim Processing Code

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (GT4) 3.73 rear axle ratio
• (K05) engine block heater
• (K40) exhaust brake and (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation (Includes (Y65) Driver Alert Package
• (JF4) power adjustable pedals and (UVD) heated leather steering wheel.

HIGH COUNTRY PREFERRED EQUIPMENT GROUP

• includes standard equipment

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

• Duramax Plus Package: Engine Block Heater; AM/FM/SiriusXM Radio with Chevrolet MyLink and Navigation; Leather Wrapped Heated Steering Wheel; 3.73 Rear Axle Ratio; Power Adjustable Pedals; Duramax 6.6L Turbo Diesel V8 Engine; Allison 1000 6-Speed Automatic Transmission with Overdrive
• Driver Alert Package: Ultrasonic Front and Rear Park Assist
• Preferred Equipment Group 3LZ: EZ-Lift and Lower Tailgate; Chrome Door Handles; Rear Vision Camera with Dynamic Guide Lines; Rear 60/40 Folding Bench Seat (folds Up); Remote Vehicle Starter System; Power Sliding Rear Window with Defogger; 6" Rectangular Chromed Tubular Assist Steps; Electric Rear-Window Defogger; Unauthorized Entry Theft-Deterrent System; AM/FM/SiriusXM Radio with Chevrolet MyLink and Navigation; 4.2" Diagonal Color Display Driver Info Center; 110-Volt AC Power Outlet; Front Halogen Fog Lamps; 150 Amps Alternator; Steering Wheel Audio Controls; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Power Windows; OnStar 6 Months Directions/Connections; Remote Keyless Entry; Electronic Shift Transfer Case; Single-Slot CD/MP3 Player; Deep-Tinted Glass; Chrome Power-Adjustable Heated Outside Mirrors; Dual-Zone Automatic Climate Control; Spray-On Pickup Box Bed Liner with Bowtie Logo; SiriusXM Satellite Radio; Bright Sill Plates; High Country; Leather-Wrapped Steering Wheel; Manual Tilt-Wheel/telescoping Steering Column; Driver and Front Passenger Visors; OnStar with 4G LTE; Single-Stage Driver and Front Passenger Air Bags; Auto-Dimming Inside Rearview Mirror; Rear Wheelhouse Liners; Chrome Bodyside Moldings
• Deep Ocean Blue Metallic
• High Idle Switch
• Underbody Shield
• LED Cargo Box Lighting
• 3.73 Rear Axle Ratio
• Trailering Wiring Provisions
• OnStar 4G LTE mobile hotspot internet access
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system with voice activation
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Lane departure warning
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Mechanical
• OnStar Directions & Connections vehicle tracker with vehicle slowdown
• Wireless audio streaming
• Forward Collision Alert
• Dual-zone front climate control
• Immobilizer
• Bose speakers
• Vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• Smart device app link
• Trailer brake controller
• Trailer sway control
• External memory control
• Pandora internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Automatic climate control
• UltraSonic front and rear parking sensors
• Front fog lights
• Leather and metal-look steering wheel
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Metallic paint
• Manual extendable trailer mirrors
• Power adjustable pedals
• Exterior mirror LED spot lights
• 18 x 8-inch front and rear chrome aluminum wheels
• LT265/70SR18 AS BSW front and rear tires
• 6 airbags

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 17100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

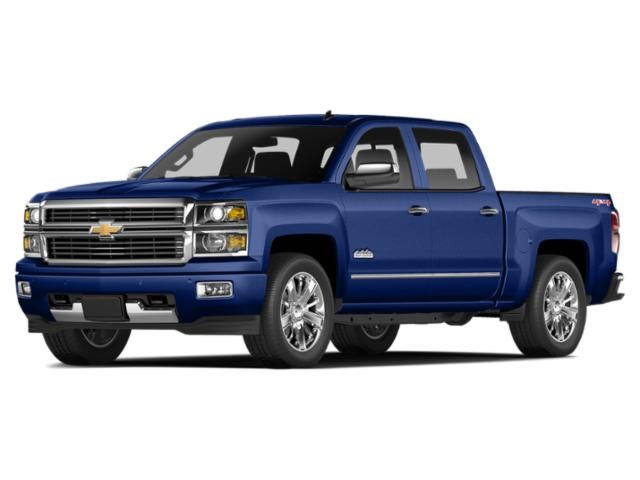

• Vehicle Name: Chevrolet Silverado 3500HD Built After Aug 14
• Body Style: Crew Cab Pickup
• Body Code: E63
